    [RESOLVED] Printer driver issue

    I recently installed Ubuntu 22.04 on my laptop. Today I printed a document that has an image with a red border. LibreOffice Writer’s print preview showed the red border. My printer is an HP Color Laser Jet Pro M277dw. I’ve had it for 5 years, and I’ve printed many pages with color borders around images, and the red borders always (until today!) printed red. Today the border printed black/gray—not red. I suspect it’s a printer driver problem. I looked at the printer settings that the new operating system provides, but I saw nil about the current printer driver. Per the Synaptic package manager, CUPS and HPLIP are installed on my computer. How do I discover the printer driver that’s in use now?

    #2

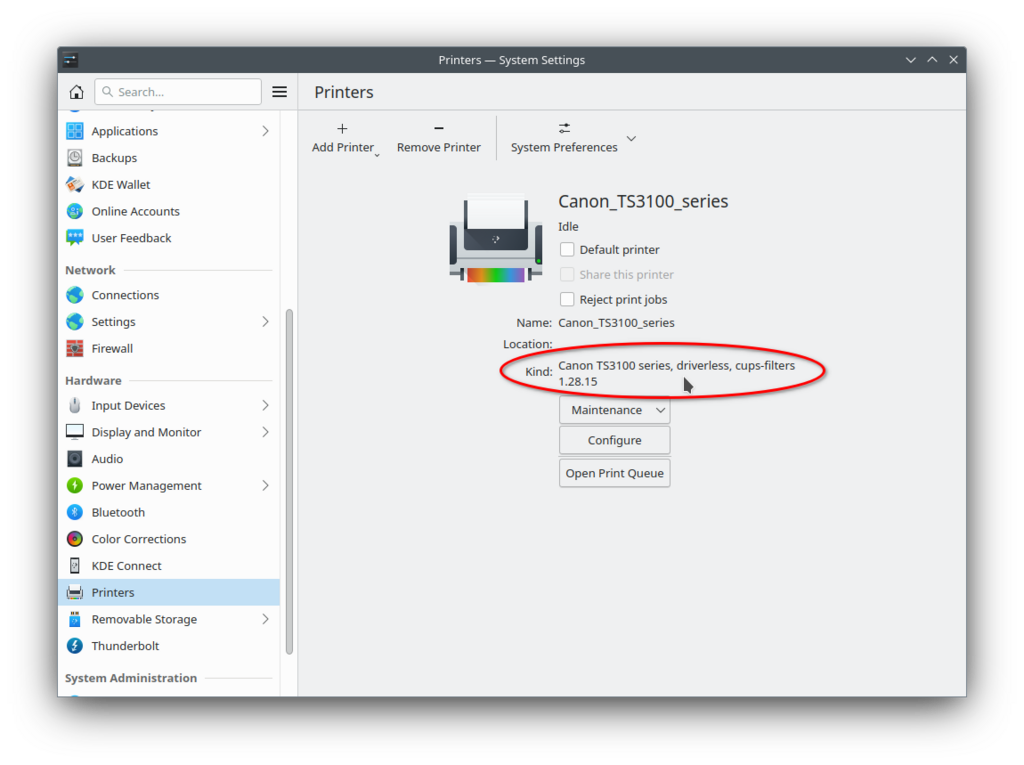

    You should be able to see the driver version directly from System Settings' printer section:
    Click image for larger version  Name:	Screenshot_20230122_130537.png Views:	0 Size:	153.0 KB ID:	667948

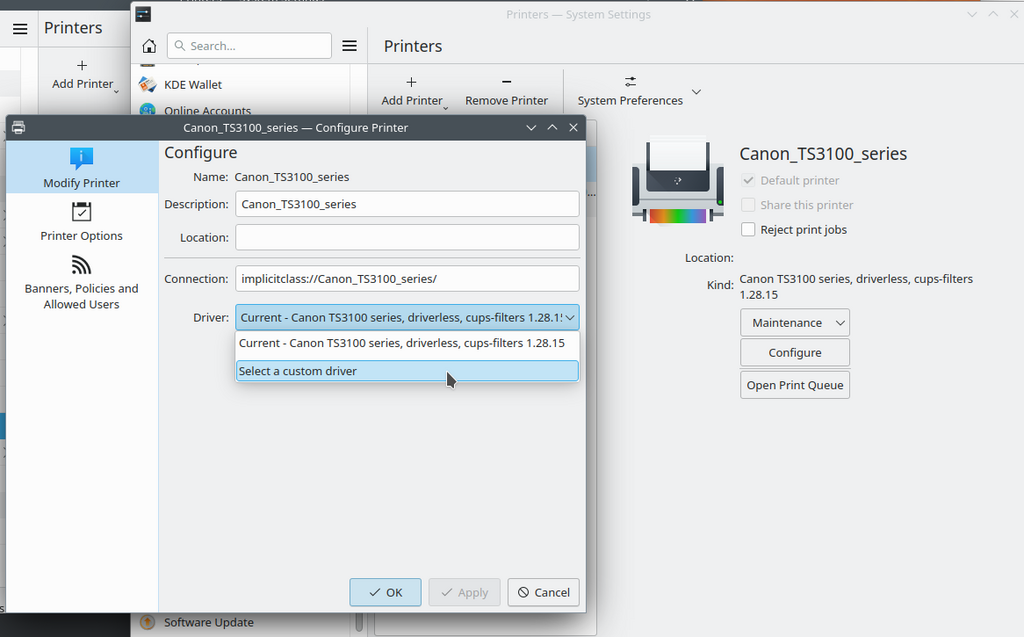

    You can also see this from the 'configure' options' , where you can also see and choose different drivers, of any, for your printer model.:

    Click image for larger version

Name:	Screenshot_20230122_131518.png
Views:	285
Size:	194.6 KB
ID:	667947

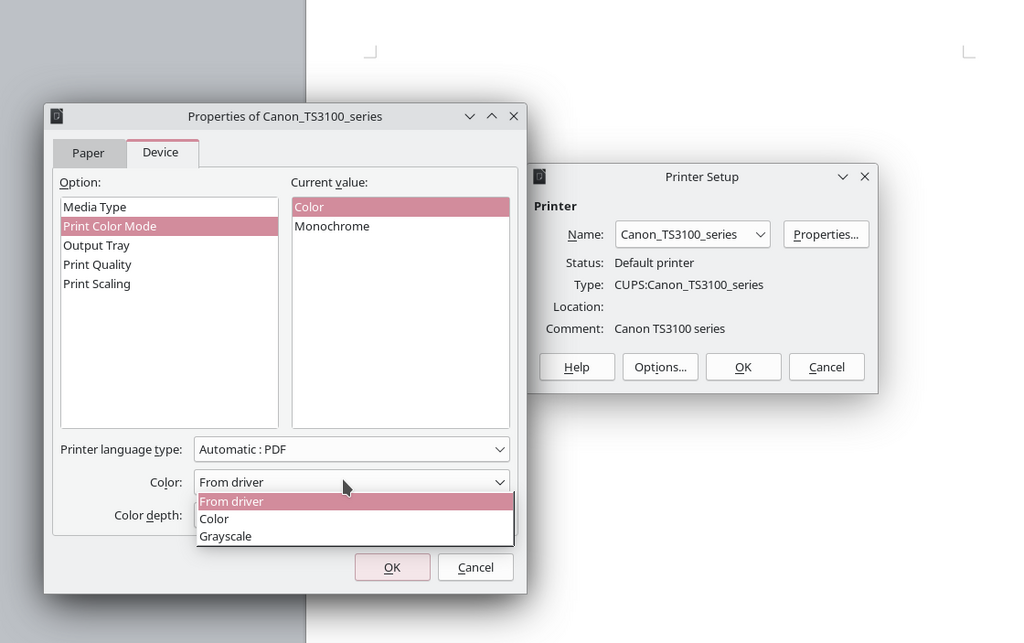

    You might also need to check both the Libreoffice's print settings as well as the printer config in System Settings, just to double check that neither is set to 'monochrome' or 'greyscale' or something.

    Comment


      #3
      I'm not the only person who has had this problem. For example, see this site: https://askubuntu.com/questions/1410...works-in-color

      If I can figure out what those folks are saying, then maybe I can solve my problem.
      Last edited by Snowhog; Jan 22, 2023, 01:25 PM.

      Comment


        #4

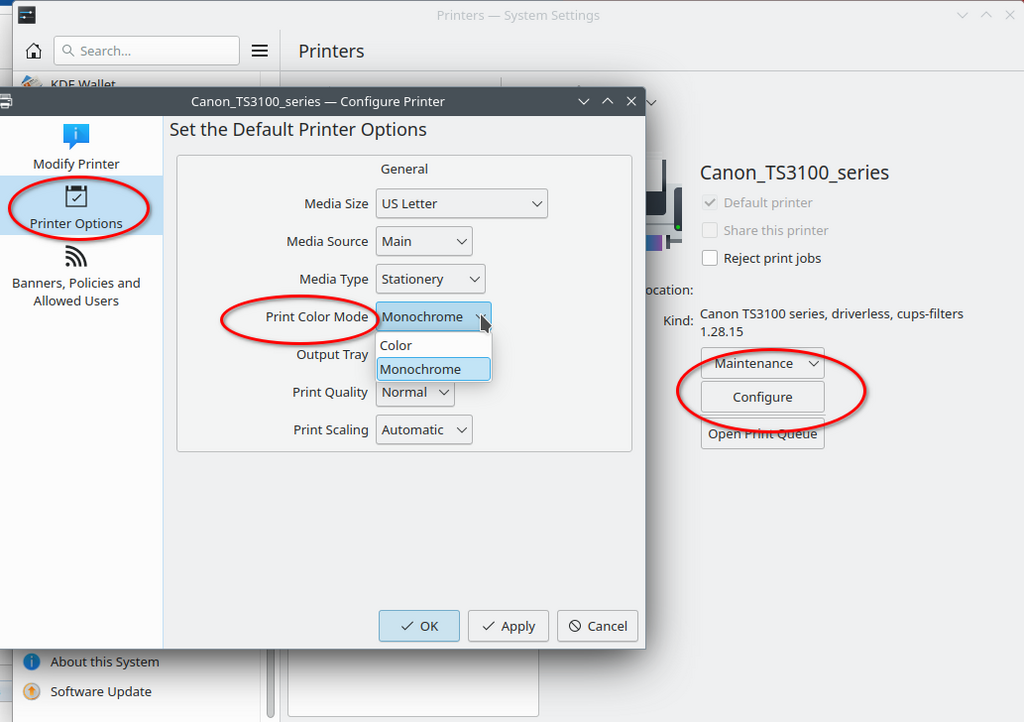

        The first answer is just going a little further than what my original screenshots show, and making sure the driver isn't by default set to monochrome:
        Click image for larger version

Name:	Screenshot_20230122_141137.png
Views:	279
Size:	220.0 KB
ID:	667954

        The second response is just a command-line method of doing the exact same thing above using the precise printer name.

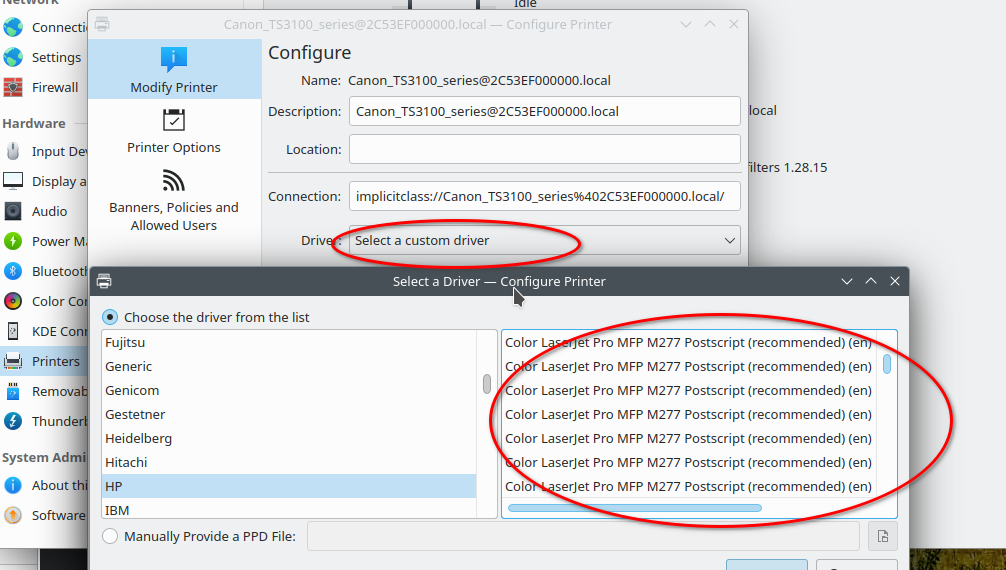

        The third response is to manually search for and choose a different driver variant for your printer, if you have one available.
        You may want to use the exact name shown in your dialogs, I am just guessing here, but it shows a number of different ones to try out, though they all are labelled identically:
        Click image for larger version

Name:	Screenshot_20230122_142443.png
Views:	277
Size:	169.7 KB
ID:	667955

        The last is using a Snap package, which you can search for using Discover, that is for an external and alternative set of the Cups drivers that this one person found useful. After installing, they went to the url given in their web browser to open a web interface for the printing services: https://localhost:8000/ , set up their printer as new from there, and things worked.



        On a side note, for the third response, and my second pic above, you may see that the listings for the different drivers is not very descriptive
        An alternative GUI that may show better info is the web interface, similar to mentioned above.

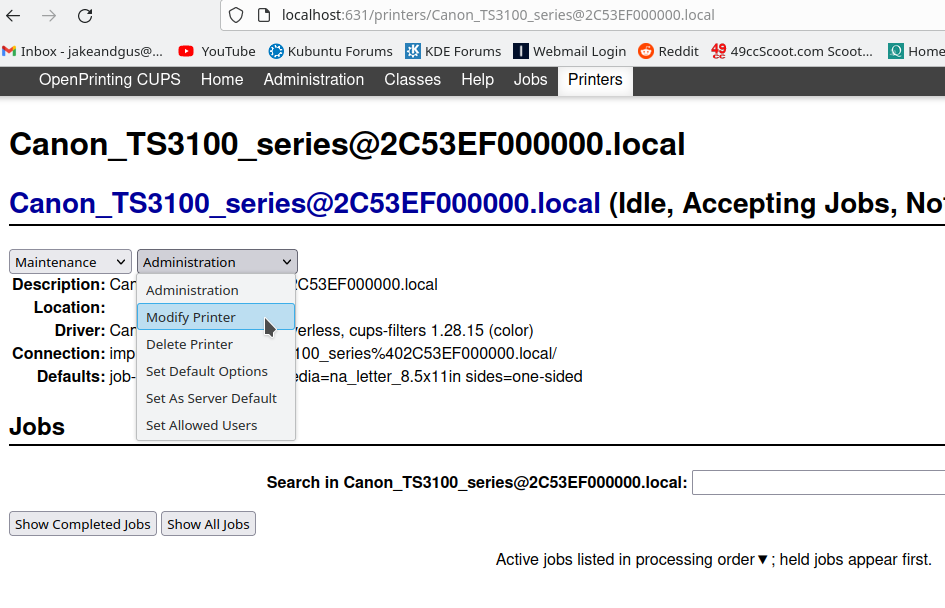

        go to https://localhost:631 and look around there, and you can configure the printer from there

        Click image for larger version

Name:	Screenshot_20230122_144918.png
Views:	286
Size:	121.2 KB
ID:	667956

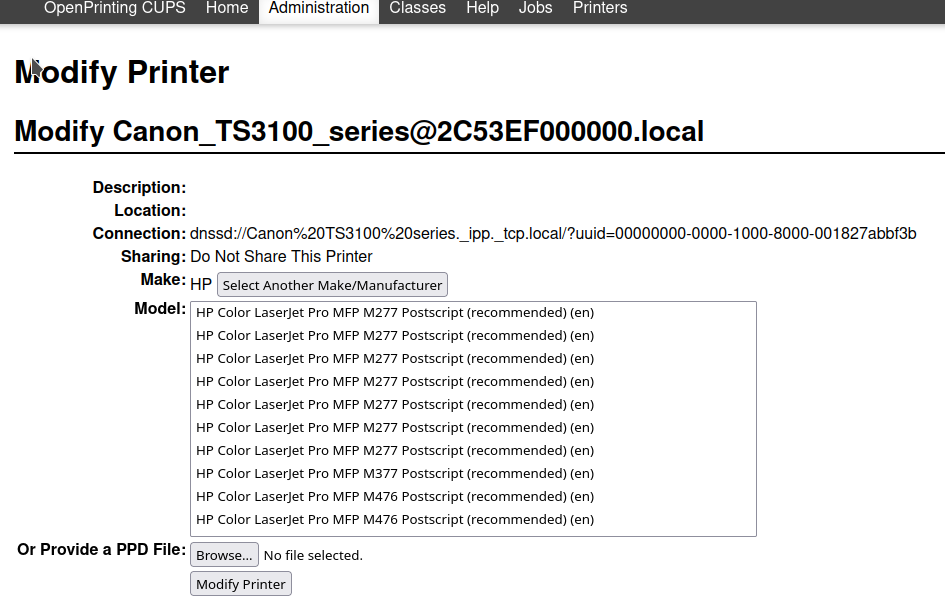

        However, I didn't see any better descriptions for the same drivers I was looking at - assuming that theses are correct for your printer
        This may not be a useful option here for you.
        Click image for larger version

Name:	Screenshot_20230122_150343.png
Views:	278
Size:	105.5 KB
ID:	667957

        The Snap package with the alternative drivers will look like the above images. A bit clunky, but should be easy enough to navigate.

        Comment


          #5
          Originally posted by wtb32141 View Post
          My printer is an HP Color Laser Jet Pro M277dw. I’ve had it for 5 years, and I’ve printed many pages with color borders around images, and the red borders always (until today!) printed red.
          Have you checked to see if the color cartridge is depleted?
          Using Kubuntu Linux since March 23, 2007
          "It is a capital mistake to theorize before one has data." - Sherlock Holmes

          Comment


            #6
            My printer prints; so the computer has some driver that it’s using. I’ve been trying (off and on) for 3 days (without success!) to find out that driver’s name. The closest I’ve come through the printer settings is 4 vertically-arranged rectangles. From top to bottom they are: (1) Name, (2) Location, (3) Address, and (4) Driver. Name’s value is my printer’s name. Location is my computer’s name. Address is a link named “localhost”. Driver shows my printer’s name! Beneath that name come: “Search for drivers”. Beneath that item comes “Select from Database...”. And beneath that item comes “Install ppd file…”. Instead of telling me the driver’s name it tells me my printer’s name! That makes a lot of sense, doesn’t it?

            I’m going to forget this driver/color printing issue for now. Sooner or later I’ll stumble upon the solution. I print very few items that need color printing, but it would be nice to have it when the need arises. More important issues need my attention now, and they don’t require color printing. My 40-chapter book on Einstein has only 3 small pictures. All 3 of them have a red border. With this new operating system (Ubuntu 22.04.1), the borders are visible—but not red! The color cartridges are fairly new, and they have been used very little; so I’m sure they are not empty. I need to start thinking about other things.

            Thank you very much for your help!​

            Comment


              #7
              You might consider installing the full HPLIP-GUI suite, which might have more utilities and options, it may be easier to find settings and options. hplip itself is mainly just the device drivers.
              I keep forgetting about this application.

              Comment


                #8
                Originally posted by wtb32141 View Post
                My printer prints; so the computer has some driver that it’s using.​
                Not necessarily. The debian wiki has info about Driverless Printing
                Regards, John Little

                Comment


                  #9
                  Originally posted by jlittle View Post
                  Not necessarily. The debian wiki has info about Driverless Printing
                  But it is odd that the OP's printer isn't showing the driver used - though I suspect the name of the printer IS the ppd being loaded here, but can't confirm without a screenshot or something from them.
                  Similar to that other printer thread here, for example
                  Also note on my screenshot above here, the driver IS shown as the 'driverless' one.

                  The OP still hasn't mentioned if they have checked the print settings , as I show in pic#1 in post #4, or if any of the other 'duplicate' ppd entries have been tried, to see if they act differently. I don't blame anyone for not trying that one, though. '

                  Also, we can't rule out a 5 year old printer, even a laser one, needing some sort of cleaning or service.
                  It is not always the OS

                  Unless it is Windows, of course

                  Comment


                    #10
                    Thank you jlittle. I was completely unaware of "driverless printing"! The site <https://openprinting.github.io/printers/> shows my printer (HP Color LaserJet Pro MFP M277dw) as capable of driverless printing, and it supports the AirPrint™​ standard for driverless printing. I know absolutely nothing about that standard, but I soon will begin reading about it.

                    Comment


                      #11
                      Part 1: Suppose I have 2 printers, A and B. Printer A has driverless printing capabilities; printer B does not. Ubuntu 22.04’s printer settings presumably will show a driver’s name for printer B (if a driver for it can be found). What will it show for printer A?

                      Part 2: I have the following 2 HP printers:
                      Printer 1 is HP Color Laser Jet M277dw I bought it on 12-9-2016. So it’s 6 years old.
                      Printer 2 is HP Laser Jet 1022 I don’t know exactly when I bought it, but it was several years before
                      I bought Printer 1.

                      The site <https://developers.hp.com/hp-linux-imaging-and-printing/supported_devices/index> says the following about my printers 1 and 2:

                      Re Printer 1: Min HPLIP Version: 3.15.4
                      Support level: Full

                      Re Printer 2: Min HPLIP Version: 2.7.10
                      Support level: Full (End of support)

                      Per Synaptic, HPLIP Version 3.21.12 is installed on my computer.

                      Ubuntu 22.04.1’s printer settings begin with this 4-item menu:
                      Printer Options
                      Printer Details
                      Use printer by default
                      Remove Printer

                      When I click on Printer Details, the following 4 items appear:
                      Name: It shows the printer’s name.
                      Location: It shows my computer’s name.
                      Address: It shows local host as a link.
                      Driver: It lists the name of my printer followed by the following 3 items:
                      Search for drivers
                      Select from Database…
                      Install PPD file…

                      When I select “Search for drivers”, it searches and then displays this message: “No suitable driver found”. That result occurs for both of my printers. Surely a suitable driver exists somewhere for my HP Color Laser Jet M277dw. So as things stand now, the HP 1022 printer won’t print at all because no driver for it has been found. The HP Color LaserJet M277dw prints but not in color. All that Ubuntu 22.04.1 has told me so far about a driver for that color printer is that “No suitable driver found.”

                      Any thoughts you may have about this post’s Part 1 and Part 2 will be appreciated.
                      Last edited by wtb32141; Jan 30, 2023, 03:27 AM.

                      Comment


                        #12
                        This site <https://support.hp.com/us-en/drivers.../model/7089949> tells me the following:

                        "Software and drivers for

                        HP Color LaserJet Pro MFP M277dw

                        Choose a different product
                        Detected operating system: Linux Choose a different OS"

                        It detected my operating system to be Linux, and it then says, "Choose a different OS." My conclusion is: The HP site has no Linux driver for my HP Color LaserJet Pro M277dw printer! Presumably it has Windows drivers for my printer but no Linux (Ubuntu 22.04.1) driver for my printer. So the printer's scanner function is gone; the color function is gone, etc. I should have chosen the dual boot option when I installed Ubuntu 22.04.1. My printer worked perfectly under Ubuntu 16.04!!! Here is one of the downsides of updating one's OS. The new version of Ubuntu also lacks the Dingbats font, which was on Ubuntu 16.04, and I used that font in writing several of the books I've written. Yes, I can buy the font and install it, but if Ubuntu 16.04 still were available to me, I would not have to spend the time and money reacquiring that font. Updating from Ubuntu 16.04 to 22.04 has been an unpleasant and costly experience for me.

                        Comment


                          #13
                          Originally posted by wtb32141 View Post
                          My conclusion is: The HP site has no Linux driver for my HP Color LaserJet Pro M277dw printer!
                          HPLIP is used instead of downloading a driver. In the monster list of more than 3,000 supported printers, there is a listing for "HP Color LaserJet MFP m277dw", lacking the "Pro", but that seems pretty close. In the list of explicitly unsupported printers, there's only 3 color laserjets, all "1500" something "Printer", not much like yours.

                          In the release notes for HPLIP, it says Ubuntu 22.04 is supported by HPLIP 3.22.6, which is the version in my 22.04 (I don't know why, I rage tossed my last HP printer when it jammed irreparably after buying lots of ink). If you've got something before 3.22.6, maybe try installing the latest version in the repos.
                          Regards, John Little

                          Comment


                            #14
                            In 22.04
                            Code:
                            $ apt policy hplip
                            hplip:
                            Installed: 3.21.12+dfsg0-1
                            Candidate: 3.21.12+dfsg0-1
                            Version table:
                            https://developers.hp.com/hp-linux-i..._devices/index
                            tghis shows the printer has support since version 3.15.4, so this should not be an issue.

                            ​However, hplip is just for the driver packs, the gui printer config tools and utils are not installed by default -- hplip-gui - which can be useful set of tools, is not installed by defualt, though I myself never really used them when I had HP printers. They might be useful in general.

                            other things to do, if they haven't been done, just to eliminate obvious issues:
                            • can you print a test page from the printer directly - NOT from a computer? This takes the driver out of the picture. If it prints in color here......
                            • can you print a test page from the printer config in System Settings -- does this print in color?
                            • Have the print settings in BOTH LibreOffice's print settings AND the printer settings been double checked that they are not set to monochrome or greyscale? LO has its own configurations for this
                            Click image for larger version

Name:	Screenshot_20230131_110309.png
Views:	245
Size:	126.0 KB
ID:	668207
                            Just some things to help eliminate hardware problems as well as Libreoffice being a culprit.

                            Comment


                              #15
                              Well folks, I have some good news. The pictures with the red borders now print RED!!! The problem was in Writer. I first got the printer to print a test page without being connected to the computer. The test page showed vivid colors. Then I connected the computer to the printer, and I printed another test page. It too looked super (bright colors). Then I printed a page with Writer. That page has a picture with a border. The border printed gray. I knew then the problem was in Writer. I again hit "Print", and this time I clicked on "Properties". The next screen shows "Paper" and "Device". I clicked on "Device", and the first item in the list says, "Print Color as Gray". It was turned "ON"; so I switched it to "Off", and the problem was solved.

                              Thank you very much to everyone who tried to help me solve this problem. I learned quite a bit about printers, but I have MUCH more to learn. What a great invention the internet is! Without it, there would be no on-line forums like this one that enables folks from all over the world to help each other solve problems and learn!

                              Comment
